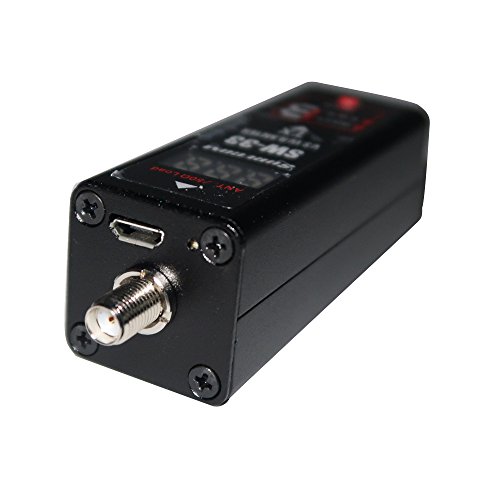

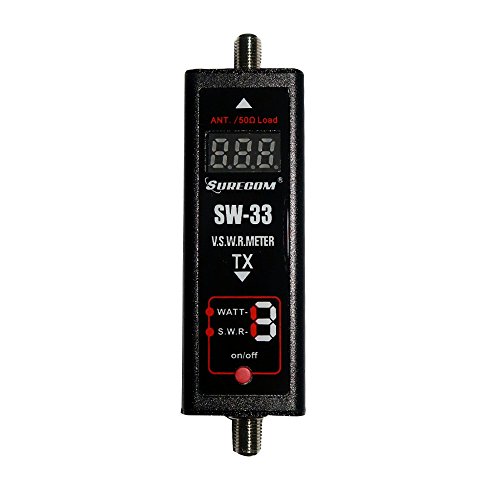

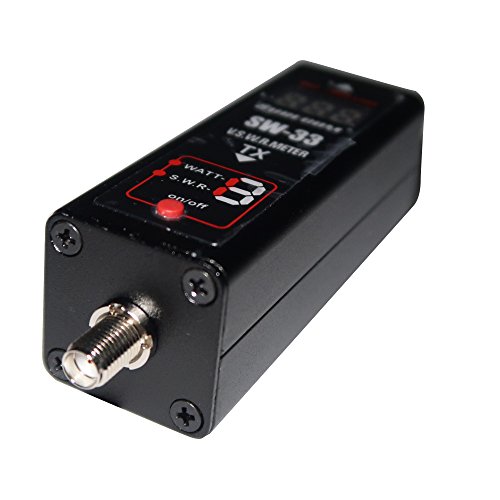

Mcbazel SW-33 Mark II 100 W da 125~520Mhz Mini Digital VHF UHF a due vie Radio Power & SWR Meter

Features:
1 VSWR. Forward and reflected power direct digital readout, without any calibration.
2. Maximum measurable power range up to 100W.
3. 3 seconds check your antenna SWR, also check your radio RF power watt.
?4.Easy to install handheld RadioSpecifications:
Measurable power range: 0.1-100W
Maximum power: 100W Accuracy: mean + / – 5%
*Not for the DMR digital radio.
MAX. Power in: 100 WATT
V.S.W.R: 1.00~19.99
Frequency Range: COVER – 125Mhz~520Mhz
Insertion Loss: <0.15dB(VHF) , <0.25dB(UHF)
Temperature: 0 ~70
Battery Built-in: Li-ion Battery
Size:(WHIT OUT SMA): 25*25*60 (mm)
Power in: 5V (micro usb)
Interface (in and out ): SMA female
Impedance: 50?
Weight: 160g
?
When the the led show 1.00 to 1.50 , mean the antenna is suit the frequency,
When the the led show 1.50 to 3.00 ? , mean the antenna is not good suit the frequency,
When the the led show up to 5.0 to 19.99? , mean the antenna is not suit the frequency.
Package includes:
1 x Surecom SW-33 Mark II

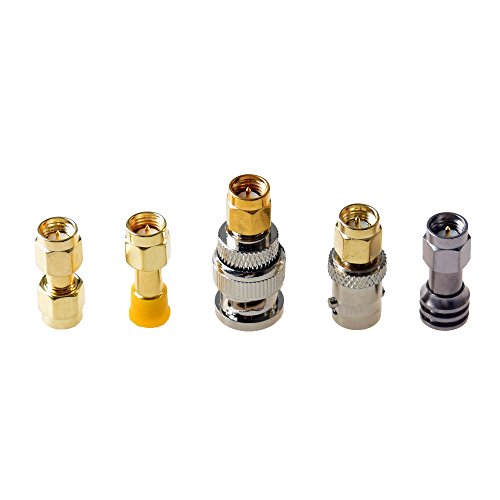

1 x SMA Dummy Loads
1 x English Manual
1 x USB Charge Cable
1 x USB AC Adapter 00-240V

Clicca qui per verificare la compatibilità di questo prodotto con il tuo modello
VSWR. Forward and reflected power direct digital readout, without any calibration.
Maximum measurable power range up to 100W.
3 seconds check your antenna SWR, also check your radio RF power watt.
Easy to install handheld RadioSpecifications,Not for the DMR digital radio.
Measurable power range: 0.5-100W. Maximum power: 100W Accuracy: mean + / – 5%
