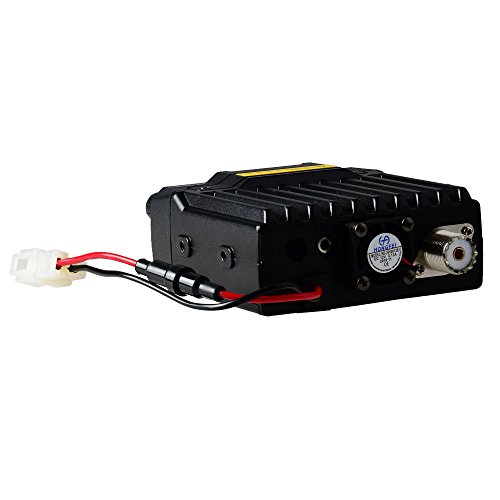

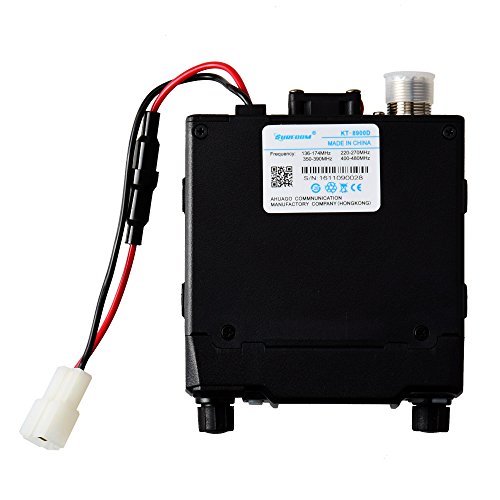

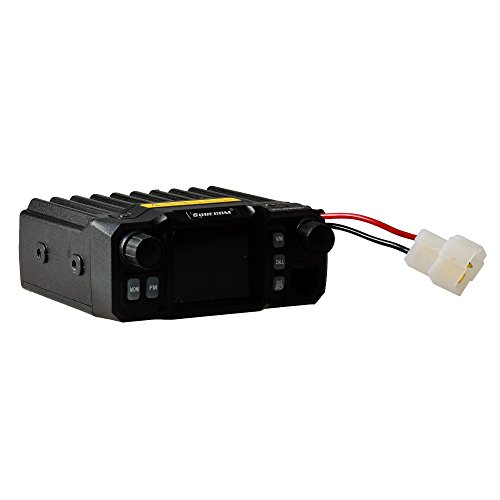

Gam3Gear Surecom KT-8900D 136-174 220-260 350-390 400-480 Schermo Mini Colori Mobile Radio

General specification
Frequency Range
VHF: 136-174MHz / 220-260MHz
UHF: 350-390MHz / 400-480MHz
Number of channels 200
Channel spacing 25KHz、 20K、12.5
Phase lock step step 2.5KHz、5KHz、6.25 KHz、10 KHz、12.5 KHz、15 KHz、25 KHz
Working voltage 13.8V DC±15%
Squelch way CTCSS、DCS、5Tone、2Tone、DTMF
Frequency stability ±2.5ppm
Operat temperature -20+60℃
Dimension 98(W)*43(H)*126(D)mm
Weight 448g

Receive（ETSI EN 300 086 Standarddized.Test）
Wide Band
Sensitivity ≤0.25μν
Channel Cholce ≥70db
Intermodulation ≥65db
Spurious Rejection ≥70db
Audio Response +13db (0.3~3KHz)
Signal to noise radio ≥45db
Audio Distortion ≤5%
Audio output power ≥2W@10%

Transmit（ETSI EN 300 086 Standarddized.Test)
Narrow Band
Sensitivity ≤0.35μν
Channel Cholce ≥60db
Intermodulation ≥60db
Spurious Rejection ≥70db
Audio Response +13db（0.3~2.55KHz）
Signal to noise radio ≥40db
Audio Distortion ≤5%
Audio output power ≥2W@10%

Transmit（ETSI EN 300 086 Standarddized.Test）
Wide Band
Output Power 25W/20W（VHF/UHF）
Modulation Mode 16KΦF3E
Channel Power ≥70db
Signal to noise radio ≥40db
Parasitic Harmonic ≥60db
Audio Response +13db（0.3~3KHz)
Audio Distortion ≤5%
Narrow Band
Modulation Mode 11KΦF3E
Channel Power ≥60db
Signal to noise radio ≥36db
Parasitic Harmonic ≥60db
Audio Response +13db（0.3~2.55KHz）
Audio Distortion ≤5%

Attention: There may be more changes ，all the rules forgive not in addition to notice or liability

Package Includes:
1 x SURECOM KT-8900D 136-174/220-260/350-390/400-480 MINI COLOR SCREEN MOBILE RADIO

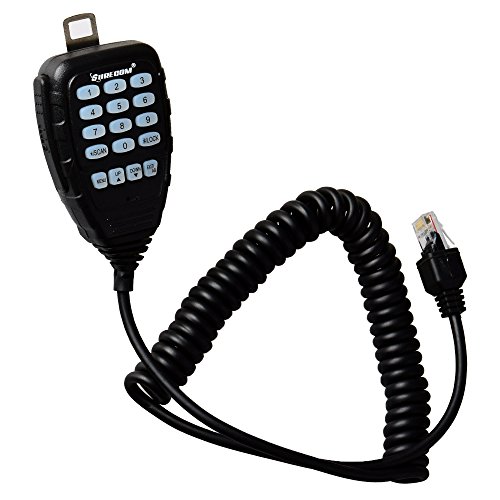

1 x Microphone

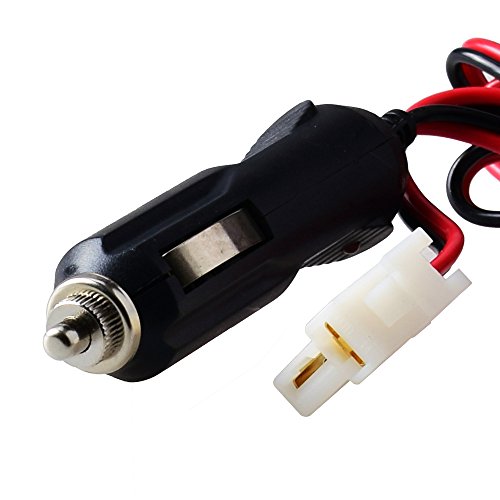

1 x Car Power Cable
1 x Fuse
1 x Mounting bracket
1 x Screw
1 x User”s Manual

Clicca qui per verificare la compatibilità di questo prodotto con il tuo modello
Quad band, Quad Sand-by, External-Speaker/PTT
VHF:136-174 MHz VHF:220-260 MHz UHF:400-480 MHz UHF:350-390 MHz
Storage Channel 200 Channels
25W output power to do Long-Distance communication
Colorful Screen
